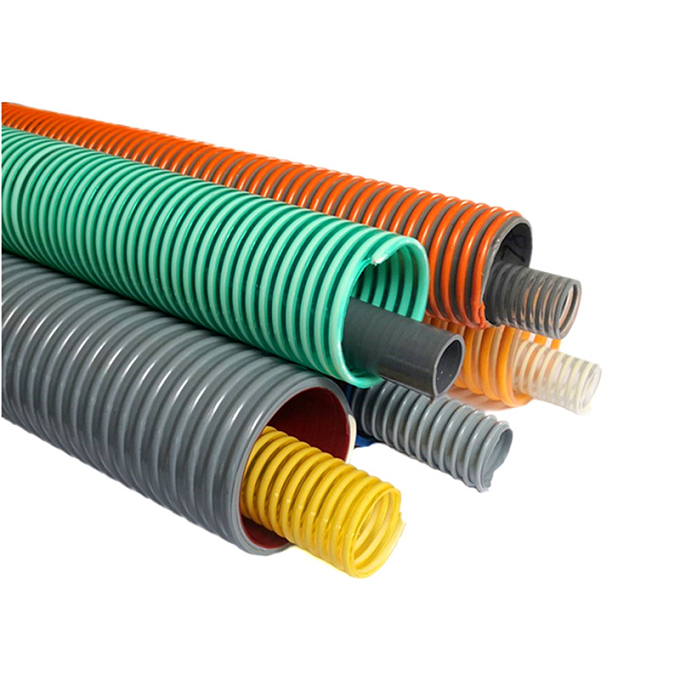

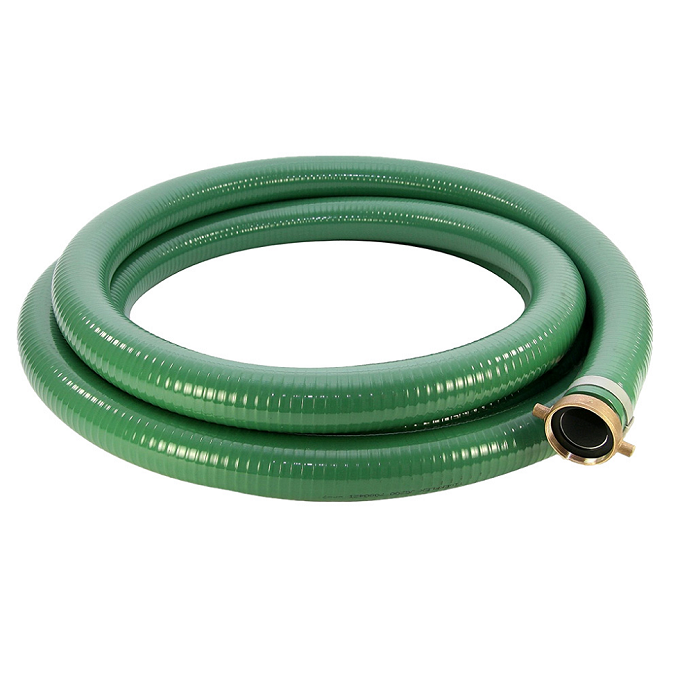

PVC suction hose

Plastic Hose Product

THIS PRODUCT IS LIGHT IN WEIGHT, HIGHLY ELASTIC, AND RESISTANT TO NEGATIVE PRESSURE AND WEATHER. IT IS APPLICABLE TO VACUUM SUCTION AND DISCHARGE OF POWDER AND PARTICLES AND TO TRANSPORTING WATER AND OIL, ETC. IT IS AN EXCELLENT SUBSTITUTE FOR RUBBER PIPE AND METAL PIPE.UA
Applications:
Besides drainage, the hose is to transfer various powdery particles and liquids. It is widely used in civil, road, garden, forest, mine, ship and fishery.

Features:
●Economical & flexible
● Wear & chemical proof
●Impact & crush resistant
●Small bend radius

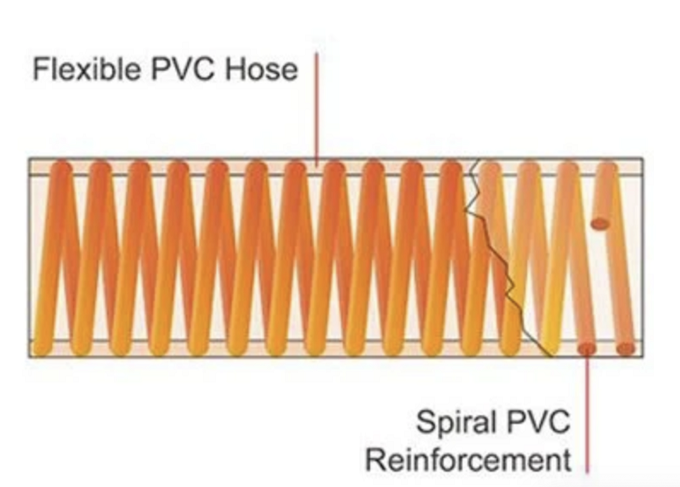

●rigid spiral helix reinforce
●Smooth inner tube will not barry the medium
Temperature: -10℃(-50℉) to 65℃(+150℉)

产品规格参数表

Inch	I.D. (mm)	O.D. (mm)	Thickness (mm)	W.P. (Bar)	B.P. (Bar)	Length (m/roll)	Weight (Kg/m)
3/4	19	23	2	8	24	30/50	0.23
	19	24	2.5	8	24	30/50	0.25
	19	25	3	9	27	30/50	0.28
1	25	29	2	8	24	30/50	0.29
	25	30	2.5	8	24	30/50	0.32
	25	31	3	9	27	30/50	0.35
1-1/4	32	36	2	7	21	30/50	0.35
	32	37	2.5	7	21	30/50	0.38
	32	38	3	8	24	30/50	0.4
	32	39	3.5	9	27	30/50	0.45
	32	40	4	9	27	30/50	0.5
1-1/2	38	42	2	6	18	30/50	0.45
	38	43	2.5	6	18	30/50	0.5
	38	44	3	7	21	30/50	0.55
	38	45	3.5	7	21	30/50	0.6
	38	46	4	7	21	30/50	0.65
	38	48	5	7	21	30/50	0.75
2	51	54	2	5	15	30	0.55
	51	55	2.5	5	15	30	0.65
	51	56	3	6	18	30	0.75
	51	57	3.5	6	18	30	0.8
	51	58	4	6	18	30	0.92
	51	59	4.5	6	18	30	1
	51	60	5	7	21	30	1.05
2-1/2	63	69	3	5	15	30	0.88
	63	70	3.5	5	15	30	0.95
	63	71	4	6	18	30	1.17
	63	72	4.5	6	18	30	1.23
	63	73	5	6	18	30	1.3
3	76	81	3	4	12	30	1.16
	76	82	3.5	4	12	30	1.25
	76	83	4	4	12	30	1.4
	76	84	4.5	5	15	30	1.5
	76	85	5	5	15	30	1.65
	76	86	5.5	5	15	30	1.75
	76	87	6	6	18	30	1.85
4	102	108	4	4	12	30	1.95
	102	109	4.5	4	12	30	2.15
	102	110	5	5	15	30	2.3
	102	111	5.5	5	15	30	2.55
	102	112	6	5	15	30	2.9
	102	114	7	6	18	30	3.2
	102	116	8	6	18	30	3.7
	102	124	12	7	21	30	6
5	127	135	5	4	12	30	3
	127	137	6	4	12	30	3.3
	127	139	7	4	12	30	3.6
	127	141	8	5	15	30	4.7
6	152	162	6	4	12	11.8	3.6
	152	163	6.5	4	12	11.8	4
	152	164	7	4	12	11.8	4.5
	152	166	8	4	12	11.8	5.5
	152	168	9	5	15	11.8	6.3
	152	170	10	5	15	11.8	7.2
	152	172	11	5	15	11.8	8.3
152	174	12	5	15	11.8	9.5
8	203	214	6.3	4	12	11.8	6.3
8	203	216	6.7	4	12	11.8	6.7
10	254	270	8	4	12	11.8	10
	254	272	9	4	12	11.8	11
	254	274	10	4	12	11.8	12
	254	276	11	5	15	11.8	13
	254	278	12	6	18	11.8	14
12	305	321	8	4	12	11.8	14
	305	325	10	5	15	11.8	15.5
	305	329	12	5	15	11.8	18

PVC suction hose

产品规格参数表
