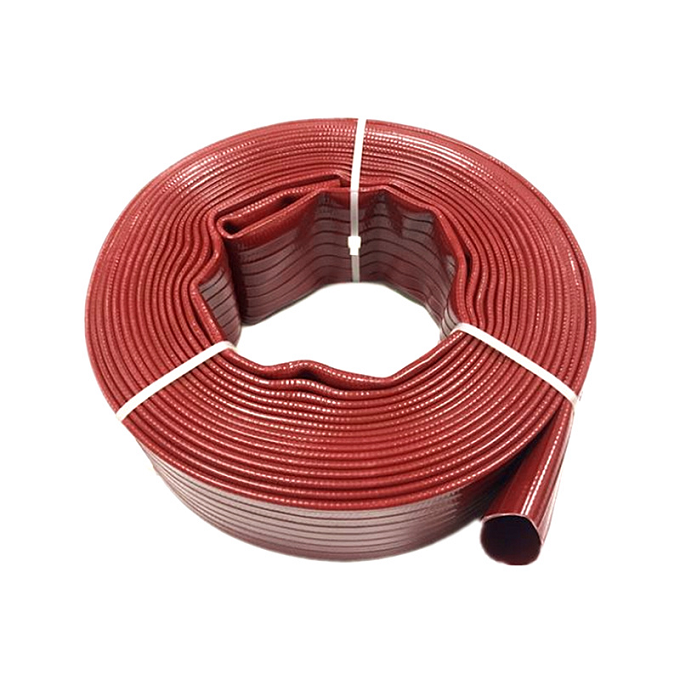

PVC lay flat hose

Plastic Hose Product

PVC lay flat hose often refers to as lay flat hose, water discharge hose, delivery hose, pump hose, and flat hose. It is perfect for use with water, light chemicals and other industrial, agricultural, mineral and construction fluids.
The hose has a high tensile strength polyester fiber circularly woven reinforce. It is one of the most durable lay flat hoses in the industry. Besides, it acts as a standard duty hose. It’s the most used hose in water supply and drainge.
PVC layflat hose Construction:
Tube and Cover: PVC, blue, orange, red.
Reinforce: high tensile polyester braid

Application:

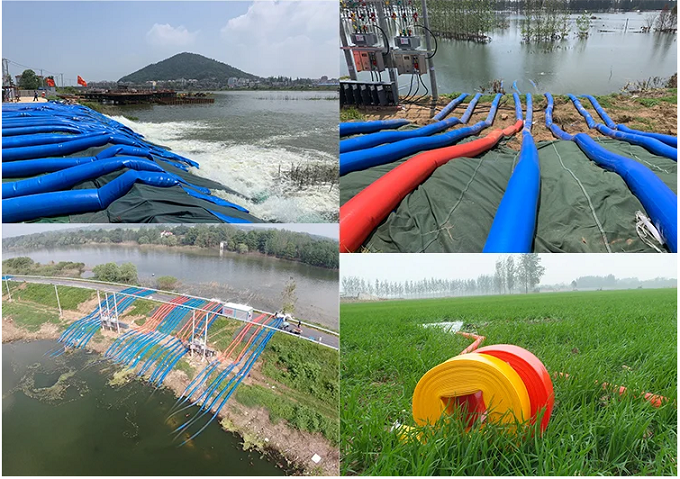

PVC layflat hose is for light and heavy duty use.the hoses are most commonly used in agricultural equipment where needs continuous water flow through irrigation systems. Other appliaction include water pump, pool & spa, construction, mines and marine.

PVC layflat hose Characteristic:
● Light weight and flexible.
● Corrosion resistant,anti-aging.
● Easy handle & storage.
● Various colors available.
● Assemblies and/or cut lengths available.
● Non-toxic, Non-smell
● Burst pressure 3 times working pressure.
Temperature: -10℃(-50℉)to + 60°C (+ 140°F)

产品规格参数表

BRITISH INCH	METRIC MESSUREMENT		W.P. AT 23℃ M/ROLL	B.P. BAR	B.P. BAR	WEIGHT KG/ROLL	PACKING MEASUREMENT D X H CM	VOLUME M3
BRITISH INCH	I.D MM	THICKNESS MM	W.P. AT 23℃ M/ROLL	B.P. BAR	B.P. BAR	WEIGHT KG/ROLL	PACKING MEASUREMENT D X H CM	VOLUME M3
1”	26	1.3	100	4	12	15	67X5	0.022
1-1/4”	33	1.2	100	4	12	17	64X5	0.025
1-1/2”	41	1.25	100	5	15	20.5	63X7	0.028
2”	53	1	100	4	12	23	60X9	0.032
2.5”	66	1.15	100	4	12	32	64X12	0.049
3”	78	1.05	100	4	12	36	64X14	0.057
4”	104	1.2	100	4	12	55	67X18	0.036
5”	128	1.35	100	4	12	75	68X22	0.102
6”	155	1.35	100	4	12	90	68X26	0.120
8”	207	2.2	100	3	9	178.5	79X34	0.212
10”	257	2.65	100	2.5	7.5	265	85X42	0.303
12”	308	2.55	100	2	6	291	85X50	0.361
