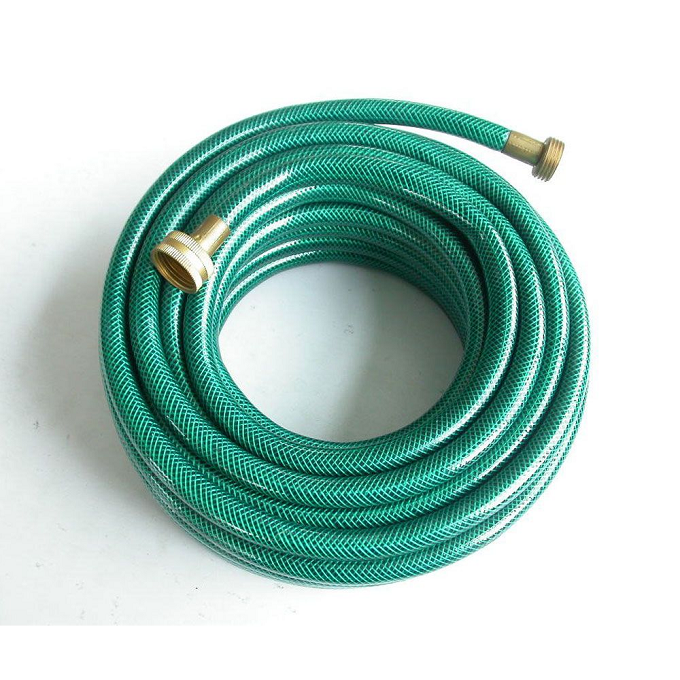

PVC fiber reinforced hose

Plastic Hose Product

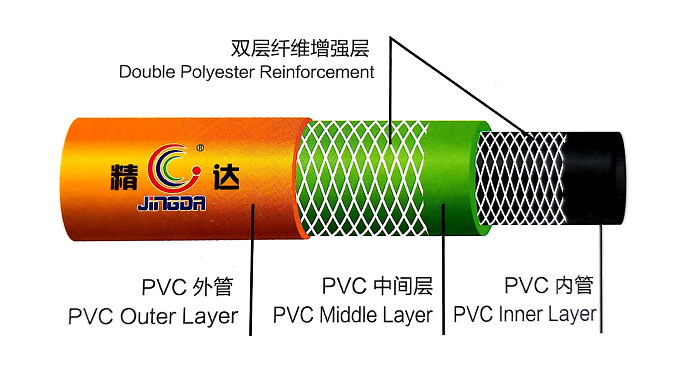

PVC Garden Hose Construction:
Tube and Cover: quality PVC
Reinforce: high tensile polyester fibre.

THIS PRODUCT IS AN IDEAL HOSE FOR SUPPLYING WATER, GAS AND OIL OF COMMON EQUIPMENT USED FOR INDUSTRY, AGRICULTURE, FISHERY, BUILDING AND HOME FURNISHING. IT IS CHARACTERIZED BY LIGHT WEIGHT, RESISTANCE TO PRESSURE, ABRASION, CORROSION, AND AGING, SOFTNESS, HANDINESS AND ATTRACTIVE APPEARANCE. COLOR MARKER LINE CAN BE ADDED TO THE PIPE SURFACE TO MAKE IT MORE ATTRACTIVE.

产品规格参数表

BRITISH INCH	METRIC MESSUREMENT		W.P. AT 23℃ M/ROLL	B.P. BAR	B.P. BAR	WEIGHT KG/ROLL	VOLUME M3
BRITISH INCH	I.D MM	O.D MM	W.P. AT 23℃ M/ROLL	B.P. BAR	B.P. BAR	WEIGHT KG/ROLL	VOLUME M3
13/64”	5	9	100	8	25	5.8	0.012
1/4”	6	10	100	10	30	6.6	0.015
1/4”	6	11	100	10	30	8.7	0.018
1/4”	6	12	100	10	30	11.1	0.019
5/16”	8	12	100	10	30	8.2	0.019
5/16”	8	13	100	10	30	10.8	0.025
5/16”	8	14	100	10	30	13.6	0.029
3/8”	9	13	100	9	27	9	0.025
3/8”	9	14	100	9	27	11.8	0.029
13/32”	10	14	100	8	24	10.2	0.029
13/32”	10	15	100	8	24	12.9	0.032
13/32”	10	16	100	8	24	16	0.038
1/2”	12	16	100	7	21	11.5	0.038
1/2”	12	17	100	7	21	14.9	0.042
1/2”	12	18	100	9	27	18.5	0.045
1/2”	13	17	100	6	18	12.3	0.042
1/2”	13	18	100	6	18	15.9	0.045
1/2”	13	19	100	8	24	19.7	0.052
35/64”	14	19	100	7	21	17	0.052
35/64”	14	20	100	7	21	21	0.057
5/8”	15	19	50	6	18	7	0.030
5/8”	15	20	50	7	21	9	0.030
5/8”	15	21	50	8	24	11.1	0.030
5/8”	16	20	50	5	15	7.4	0.030
5/8”	16	21	50	7	21	9.5	0.030
5/8”	16	22	50	8	24	11.7	0.031
45/64”	18	24	50	6	18	13	0.035
3/4”	19	23	50	4	12	8.6	0.043
3/4”	19	24	50	4	12	11.1	0.043
3/4”	19	25	50	7	21	13.6	0.045
3/4”	19	26	50	8	24	16.2	0.050
25/32”	20	25	50	6	18	11.6	0.046
25/32”	20	26	50	6	18	14.2	0.048
25/32”	20	27	50	7	21	16.9	0.051
25/32”	20	28	50	7	21	19.7	0.057
7/8”	22	27	50	5	15	12.6	0.056
7/8”	22	28	50	6	18	15.4	0.058
7/8”	22	29	50	6	18	18.4	0.058
7/8”	22	30	50	7	21	21.4	0.058
1”	25	30	50	4	12	14.1	0.068
1”	25	31	50	5	15	17.3	0.072
1”	25	32	50	5	15	20.5	0.077
1”	25	33	50	6	18	23.9	0.079
1-1/4”	32	39	40	4	12	20.4	0.119
1-1/4”	32	40	40	5	15	23.7	0.119
1-1/4”	32	41	40	5	15	27	0.103
1-1/4”	32	42	40	5	15	30.4	0.103
1-1/2”	38	45	40	4	12	23.9	0.151
1-1/2”	38	46	40	4	12	27.6	0.151
1-1/2”	38	48	40	4	12	35.4	0.155
1-3/4”	45	55	30	4	12	30.9	0.217
2”	50	58	30	3	9	26.7	0.198
2”	50	59	30	4	12	30.3	0.198
2”	50	60	30	4	12	33.9	0.198
2”	50	62	30	4	12	41.5	0.209
2-1/2”	64	78	25	4	12	51.5	0.304
3”	75	90	20	4	12	51	0.350
